Would you like a QR code embedded in that cookie?
Researchers from Osaka University develop “interiqr”, a novel three-dimensional (3D) printing method of embedding edible QR codes—a type of barcode—in the interior of cookies
There is currently a race to develop edible tags for food so that, for example, you can see where the food comes from or its ingredients, and the information disappears once you’ve eaten it. Now, researchers from Japan have developed a way to include an unobtrusive edible tag embedded inside the food—in their original experiments, cookies—that can be read without having to first destroy the food. Another major advantage of their method, known as “interiqr,” is that the tag doesn’t change the outer appearance or taste of the food at all.

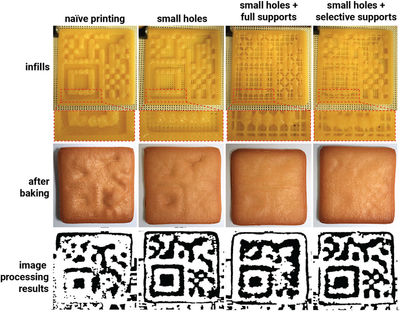

We experiment several internal structures to estimate the optimal solution for the structure that does not change the appearance of the cookie, but still allows the data to be read.
2022 Miyatake et al., ACM UIST 2022

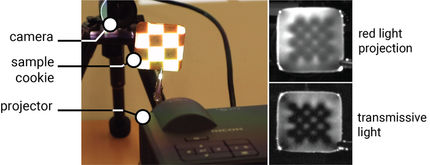

Data readable with reduced light scattering through the high-frequency pattern from the backside irradiation.
2022 Miyatake et al., ACM UIST 2022

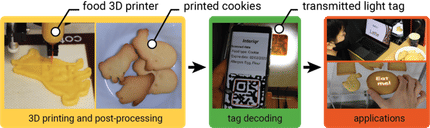

Our method utilizing food 3D printer to embed edible data inside food products. So that it is create a new eating experience through this embedding process.
2022 Miyatake et al., ACM UIST 2022
symbolic picture
Computer generated picture
Tags containing data are commonly used in the food industry. They range from the very basic, like stickers on fruit, to the more technological, such as radio frequency identification tags that use electromagnetic fields for the automatic identification and tracking of products. However, as the world attempts to cut back on extra packaging, the race is on to develop edible food tags that are non-toxic, don’t change the food’s flavor or appearance, and can be read without having to destroy the food itself. The research team at Osaka University wanted to address all of these issues.
“Many foods can now be produced using 3D printers,” explains Yamato Miyatake, lead author of the study. “We realized that the insides of edible objects such as cookies could be printed to contain patterns of empty spaces so that, when you shine a light from behind the cookie, a QR code becomes visible and can be read using a cellphone.”
In this way, a QR code that is made of the cookie itself is used as the tag, thereby solving any issues of taste and flavor. Even better, because all of the information is contained inside the food, the outer appearance of the cookie is completely unchanged. And because a simple backlight can be used to make the QR code visible, the information is readily available to producers, retailers, and consumers at any stage of the cookie’s journey from factory to stomach.
“Our 3D printing method is a great example of the digital transformation of foods, which we hope will improve food traceability and safety,” says senior author of the study, Kosuke Sato. “This technology can also be used to provide novel food experiences through augmented reality, which is an exciting new field in the food industry.”
Given that food tags and packaging are a large source of waste worldwide, this new method of embedding edible information into food will also be important for waste reduction. The widespread adoption of such technologies is hoped to pave the way toward a cleaner, more cookie-filled future.
